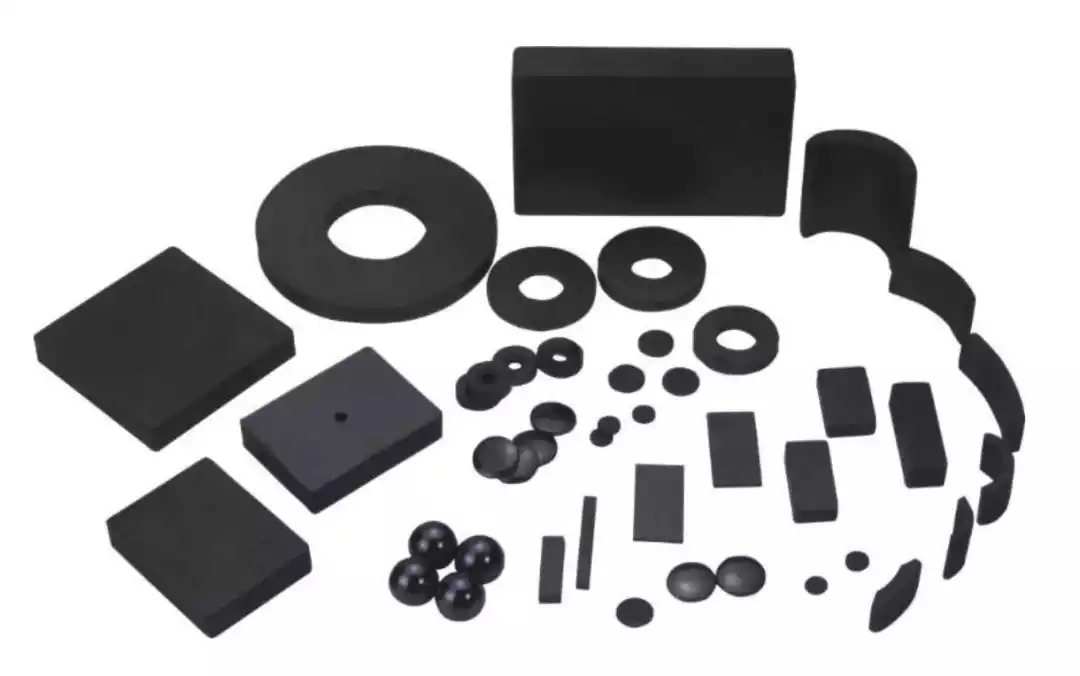

Sintered Ferrite Magnets

• Material: SrFe / BaFe Ferrite

• Grade: Y10T, Y25, Y30, Y35 etc.

• Magnetization: Axial / Radial / Multi-pole

• Tolerance: ±0.05mm (typical)

Sintered Ferrite Magnet is a type of permanent magnet made from iron oxide (Fe₂O₃) combined with other metallic elements such as barium or strontium. The material is pressed into shape and sintered at high temperature to form a hard, brittle magnet with stable magnetic properties.

Key Features

• Low cost compared with rare-earth magnets
• Good corrosion resistance (usually no coating required)
• Stable performance at high temperatures
• Strong resistance to demagnetization
• Suitable for mass production

Typical Applications

• Electric motors
• Loudspeakers
• Household appliances
• Magnetic separators
• Sensors
• Automotive components

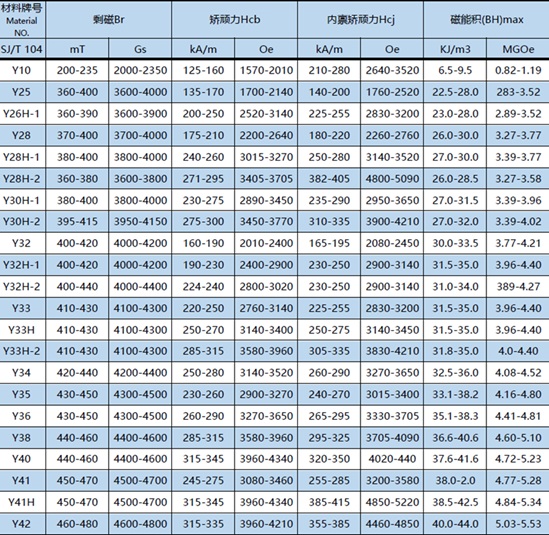

Technical parameters
